The holders and cooling devices are specially designed for the low power and kV tubes. They are made of pure copper or aluminum which provides a good heat transmission and attached directly on the tube. The holders and cooling devices can be used for conduction, water and air cooling, and some provide an X-ray protection. There are options for different emission angles and magnetic shielding. The holders and cooling devices are easily apply on various equipment.

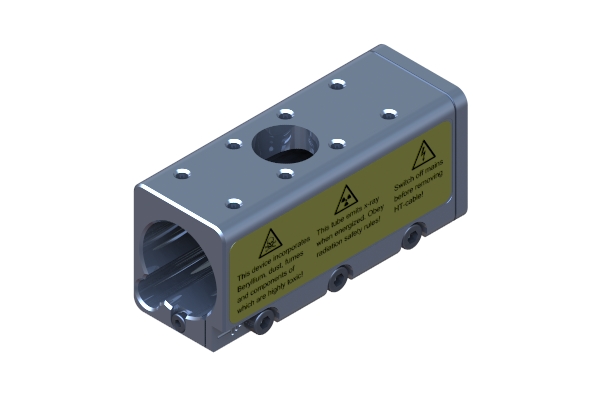

Show list of all holders & cooling devices for MCBL 25.
| Name | Material | Emission angle | Cooling | Anode | Cathode | Dimensions (DxWxH) | Datasheet | 3D-Model |
|---|

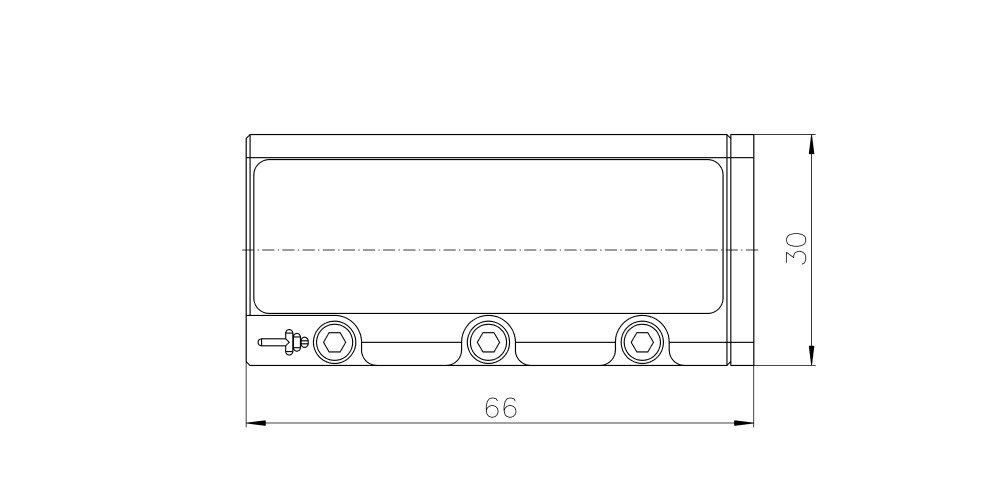

| Set 1 | Cooper | 35° | conduction | x | x | 66 x 25 x 30 mm | | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

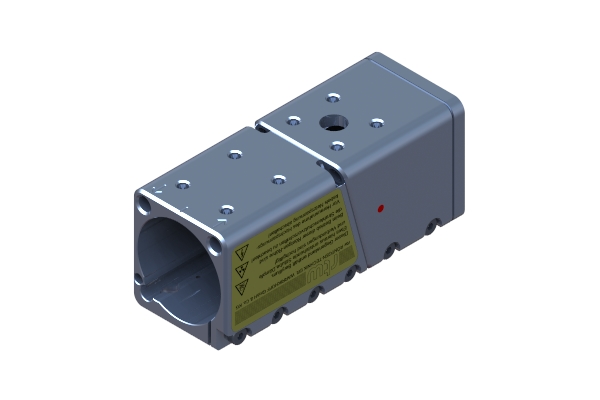

Show list of all holders & cooling devices for MCBI 20.
| Name | Material | Emission angle | Cooling | Anode | Cathode | Dimensions (DxWxH) | Datasheet | 3D-Model |
|---|
|
| Set 1 | Cooper | 18° | conduction | x | | 70 x 45 x 49 mm | | |
| Set 2 | Cooper | 18° | water | x | | 70 x 45 x 49 mm | | |
| Set 4 | Cooper | 18° | conduction | x | x | 115 x 45 x 49 mm | | |
| Set 5 | Cooper | 18° | water | x | x | 115 x 45 x 49 mm | | |
| Set 8 | Aluminium | 18° | conduction | x | x | 80 x ø59 mm | | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Name | Material | Emission angle | Option available for | Datasheet | 3D-Model |
|---|
|
|
|
|
|
|
| Option 2 | Copper | 60° x 10° | Set 4, Set 5 | | |
| Option 3 | Copper | 90° x 10° | Set 4, Set 5 | | |
| Option 4 | Copper | 40° | Set 4, Set 5 | | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Show list of all holders & cooling devices for MCBI 40.
| Name | Material | Emission angle | Cooling | Anode | Cathode | Dimensions (DxWxH) | Datasheet | 3D-Model |
|---|
|
|
|
|
|
|
|
|
|
| Set 1 | Cooper | 18° | conduction | x | | 70 x 45 x 49 mm | [PDF] | |
| Set 2 | Cooper | 18° | water | x | | 70 x 45 x 49 mm | [PDF] | |

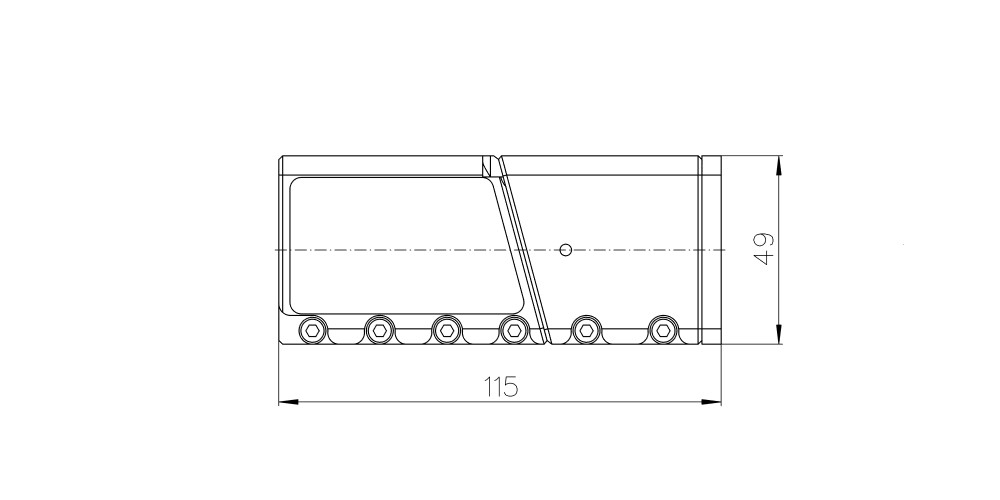

| Set 4 | Cooper | 18° | conduction | x | x | 115 x 45 x 49 mm | [PDF] | |
| Set 5 | Cooper | 18° | water | x | x | 115 x 45 x 49 mm | [PDF] | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Name | Material | Emission angle | Option available for | Datasheet | 3D-Model |
|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Option 2 | Copper | 60° x 10° | Set 4, Set 5 | [PDF] | |
| Option 3 | Copper | 90° x 10° | Set 4, Set 5 | [PDF] | |
| Option 4 | Copper | 40° | Set 4, Set 5 | [PDF] | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

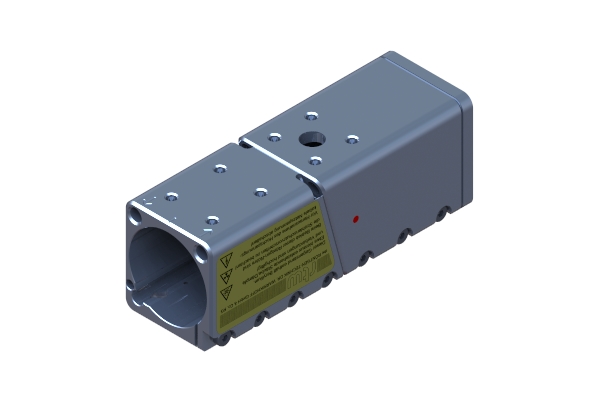

Show list of all holders & cooling devices for MCBI 50.
| Name | Material | Emission angle | Cooling | Anode | Cathode | Dimensions (DxWxH) | Datasheet | 3D-Model |
|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Set 1 | Copper | 18° | conduction | x | | 70 x 45 x 49 mm | [PDF] | |
| Set 2 | Copper | 18° | water | x | | 70 x 45 x 49 mm | [PDF] | |

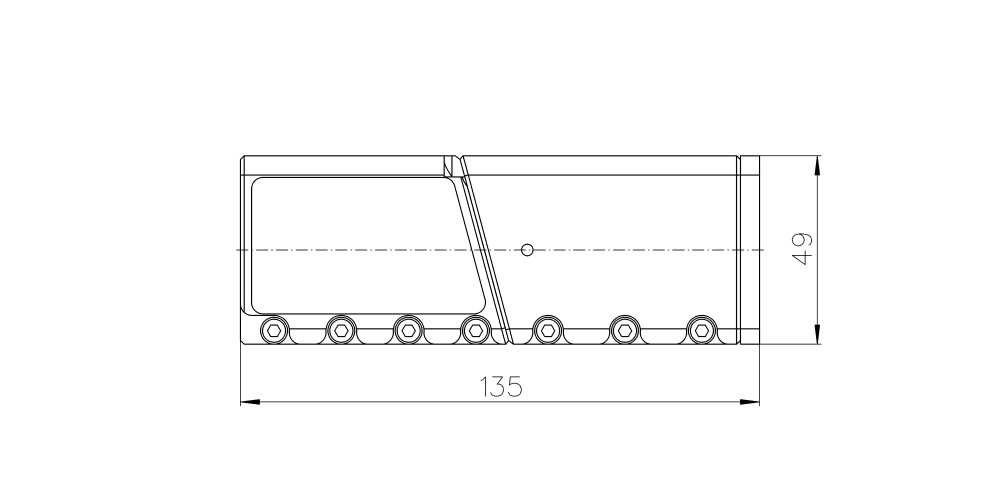

| Set 4 | Copper | 18° | conduction | x | x | 135 x 45 x 49 mm | [PDF] | |
| Set 5 | Copper | 18° | water | x | x | 135 x 45 x 49 mm | [PDF] | |
| Set 6 | Copper | 18° | air | x | x | 135 x 45 x 49 mm | [PDF] | |
| Set 7 | Copper | 18° | air, water | x | x | 135 x 45 x 49 mm | [PDF] | |
| Set 9 | Aluminium | 18° | conduction | x | | 70 x 45 x 49 mm | [PDF] | |
| Set 10 | Aluminium | 18° | conduction | x | x | 135 x 45 x 49 mm | [PDF] | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Name | Material | Emission angle | Option available for | Datasheet | 3D-Model |
|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Option 1 | Mu-metal | 18° | Set 10 | [PDF] | |
| Option 2 | Copper | 60° x 10° | Set 4, Set 5, Set 6, Set 7 | [PDF] | |
| Option 3 | Copper | 90° x 10° | Set 4, Set 5, Set 6, Set 7 | [PDF] | |
| Option 4 | Copper | 40° | Set 4, Set 5, Set 6, Set 7 | [PDF] | |
|
|
|
|
|
|
|
|
|
|

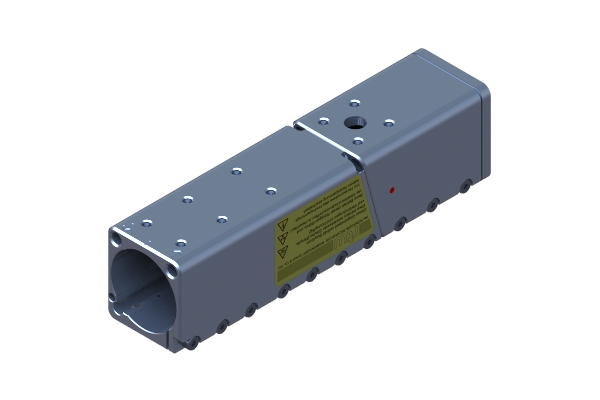

Show list of all holders & cooling devices for MCBI 65.
| Name | Material | Emission angle | Cooling | Anode | Cathode | Dimensions (DxWxH) | Datasheet | 3D-Model |
|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Set 1 | Copper | 18° | conduction | x | | 125 x 45 x 49 mm | [PDF] | |
| Set 2 | Copper | 18° | water | x | | 125 x 45 x 49 mm | [PDF] | |

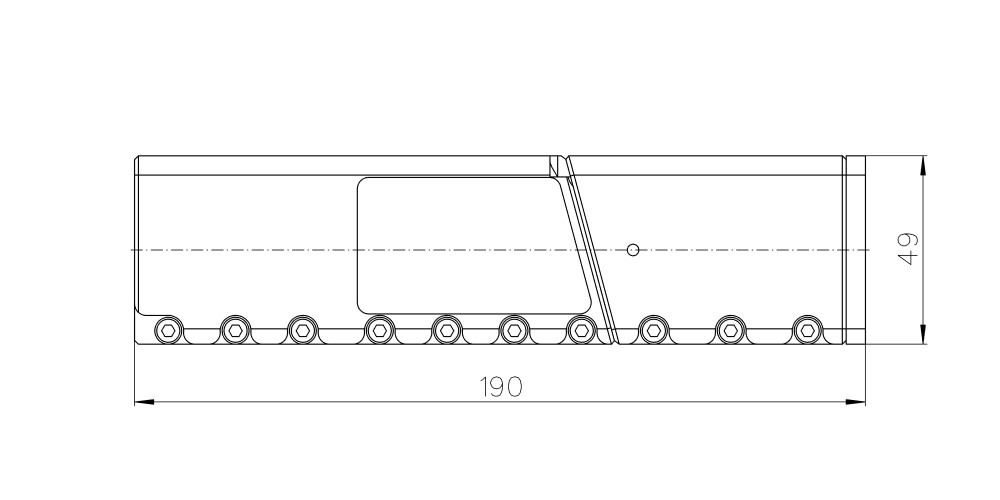

| Set 4 | Copper | 18° | conduction | x | x | 190 x 45 x 49 mm | [PDF] | |
| Set 5 | Copper | 18° | water | x | x | 190 x 45 x 49 mm | [PDF] | |
| Set 6 | Copper | 18° | air | x | x | 190 x 45 x 49 mm | [PDF] | |
| Set 7 | Copper | 18° | air, water | x | x | 190 x 45 x 49 mm | [PDF] | |
| Set 8 | Stainless steel | 40° | water | x | x | 210 x ø53 mm | [PDF] | |
|
|
|
| Name | Material | Emission angle | Option available for | Datasheet | 3D-Model |
|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Option 2 | Copper | 60° x 10° | Set 4, Set 5, Set 6, Set 7 | [PDF] | |
| Option 3 | Copper | 90° x 10° | Set 4, Set 5, Set 6, Set 7 | [PDF] | |
| Option 4 | Copper | 40° | Set 4, Set 5, Set 6, Set 7 | [PDF] | |
